Flange Ball Valve 10K
Introduction
This style of Japanese standard ball valve is designed and manufactured according to Japanese standards and consists of important parts such as valve body, valve cover, ball body and valve stem, etc. The ball is designed as a floating ball with compact structure and reasonable design, which is one of the indispensable accessories for industrial pipelines.
Product performance and characteristics.
1. High-quality material casting and finishing, corrosion resistance, high-temperature resistance.
2. High flow rate, low flow resistance.
3. Precision processing, PTFE soft seal, good sealing performance.
4. 90-degree rotary switch, fast switching speed.

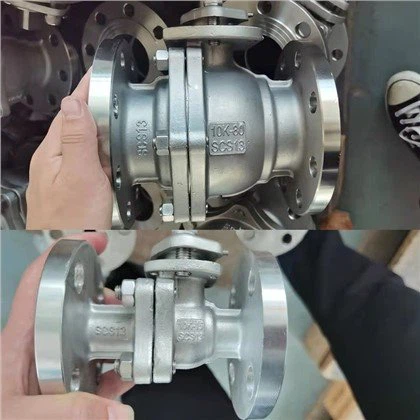

Product detail:
Technical Data:
NPS | D1 | D2 | D3 | D4 | L | NxØB | C | F | E | G | R1 | R2 | T X T |
1/2" | 15 | 51 | 70 | 95 | 108 | 4-15 | 12 | 1 | 36 | 42 | 6 | 6 | 9 X 9 |
3/4" | 20 | 56 | 75 | 100 | 117 | 4-15 | 14 | 1 | 36 | 42 | 6 | 6 | 9 X 9 |
1" | 25 | 67 | 90 | 125 | 127 | 4-19 | 14 | 1 | 42 | 50 | 6 | 8 | 11 X 11 |
11/4" | 32 | 76 | 100 | 135 | 140 | 4-19 | 16 | 2 | 42 | 50 | 6 | 8 | 11 X 11 |
11/2" | 40 | 81 | 105 | 140 | 165 | 4-19 | 16 | 2 | 50 | 70 | 8 | 10 | 14 X 14 |
2" | 50 | 96 | 120 | 155 | 178 | 4-19 | 16 | 2 | 50 | 70 | 8 | 10 | 14 X 14 |
21/2" | 65 | 116 | 140 | 175 | 190 | 4-19 | 18 | 2 | 70 | 102 | 10 | 12 | 17 X 17 |
3" | 80 | 126 | 150 | 185 | 203 | 8-19 | 18 | 2 | 70 | 102 | 10 | 12 | 17 X 17 |
4" | 100 | 151 | 175 | 210 | 229 | 8-19 | 18 | 2 | 70 | 102 | 10 | 12 | 17 X 17 |
5" | 125 | 182 | 210 | 250 | 356 | 8-23 | 20 | 2 | 102 | 125 | 12 | 14 | 22 X 22 |
6" | 150 | 212 | 240 | 280 | 394 | 8-23 | 22 | 2 | 102 | 125 | 12 | 14 | 24 X 24 |
8" | 200 | 262 | 290 | 330 | 457 | 12-23 | 22 | 2 | 125 | 143 | 14 | 16 | 27 X 27 |
Product description
Material: | CF8/CF8M/F304L/F316L/A216/WCB/A105 |
Connection: | Female,Male,flange |
MOQ: | 5000USD/ORDER |
Packing: | export standard |
Brand Name: | zhongtou/ZT |
Price: | According to quantity |
Original: | Zhe Jiang, China |
Payment term: | TT, LC |
Delivery date: | According to the order quantity, In stock within seven days, out of stock takes 30-60 days |
Warranty: Sales Terms: | 1 year FOB TO NINGBO O SHANGHAI |
Material List
No. | PART | MATERIAL |
1 | Body | SCS14 / SCS13 |
2 | Ball | SUS316 / SUS304 |
3 | Gasket | PTFE |
4 | Washer | PTFE |
5 | Cap | SCS14 / SCS13 |
6 | Bolt | A193-B8 |
7 | Nut | A194-8 |
8 | Gland | SUS316 / SUS304 |
9 | Stem | SUS316 / SUS304 |
10 | Thrust Washer | PTFE |
11 | O-Ring | RUBBER |
12 | Stem Packing | PTFE |
13 | Hex Bolts | A193-B8 |
Our Service
We provide technical design and solutions.
Free site visits and presentations of our plants.
We provide process design and validation free of charge.
Dedicated personnel to track all orders and notify customers in a timely manner.
All after-sales requests will be answered within 48 hours.
